Shoulder and slotting cutters

Slotworx®

Universal shoulder and slotting cutter with modern cutting edge geometry
Slotworx are premiumtools from Pokolm.

Slotworx® is a universal shoulder and slotting cutter with modern cutting-edge geometry. In sizes S, M and L, the complete Slotworx® tool system range covers a wide range of possible applications.

The Slotworx® milling cutters in size M are multifunctional with the most comprehensive range of inserts. For instance, by switching to a high-feed insert, you can turn the shoulder and slotting cutter into a high-feed milling cutter in next to no time. The specially developed inserts are suitable for high-feed hard machining of all materials up to a hardness of 60 + 2 HRC. The specially developed rake face geometry of these cutting tools also guarantees extremely long tool life and smooth running.

Size S of the tool system may be small in size, but it is big in performance. These milling cutters are characterized by an exceptionally light cut.

Meanwhile, cutting depths of up to 14 mm can be easily realized with Slotworx® milling cutters in size L. As a result, these milling systems achieve enormous metal removal rates and high process speeds.

Indexable inserts

These precision-ground, polished indexable inserts with state-of-the-art cutting-edge geometries ensure the highest standards of precision and accuracy. The wiper edge integrated into all indexable inserts ensures outstanding surface quality during face milling. The helical cutting-edge geometry with a positive rake angle delivers a very light cut and extremely good surface results both on 90° shoulders and on flat surfaces, with consistently good edge stability. Some of the cutting tool materials available in the economical Slotworx® tool system are also suitable for finish machining.

All Slotworx® milling tools are available as shell-type, screw-in or straight shank milling cutters with or without a Weldon flat and with Pokolm’s DuoPlug® clamping system for maximum radial run-out accuracy and stiffness.

In the milling head, the interaction between the mill body, insert and insert screw is optimized to minimize out-of-balance issues. This guarantees particularly smooth running.

For maximum process reliability, all Slotworx® milling systems have a unique internal coolant supply right up to the cutting edge, which prevents chips from sticking to the cutting surface. This enables reliable milling even when working with difficult materials.

Slotworx are premiumtools from Pokolm.

Slotworx®, size L, diameter of 52 mm

Areas of appplication

Whether for face, peripheral or slot milling, the Slotworx® series offers the right tool and indexable insert combination for every job.

The screw-in tools are ideal for finish machining at great depths in conjunction with heavy-duty metal rods and for roughing in deep cavities in conjunction with solid carbide extensions. The precision-manufactured mill bodies ensure excellent milling results.

Even in deep cavities, it is possible to machine 90° shoulders precisely and with low vibration at high cutting parameters. Smooth surfaces on the workpiece are achieved by the finishing chamfers integrated into the indexable inserts.

  • The icon describes the face milling processing type.

    face milling

  • The icon describes the angled plunging processing type.

    angled plunging

  • The icon describes the circular plunging processing type.

    circular plunging

  • The icon describes the slot milling processing type.

    slot milling

  • The icon describes the pocket milling processing type.

    pocket milling

  • The icon describes the sharp corner milling processing type.

    sharp corner milling

Highlights

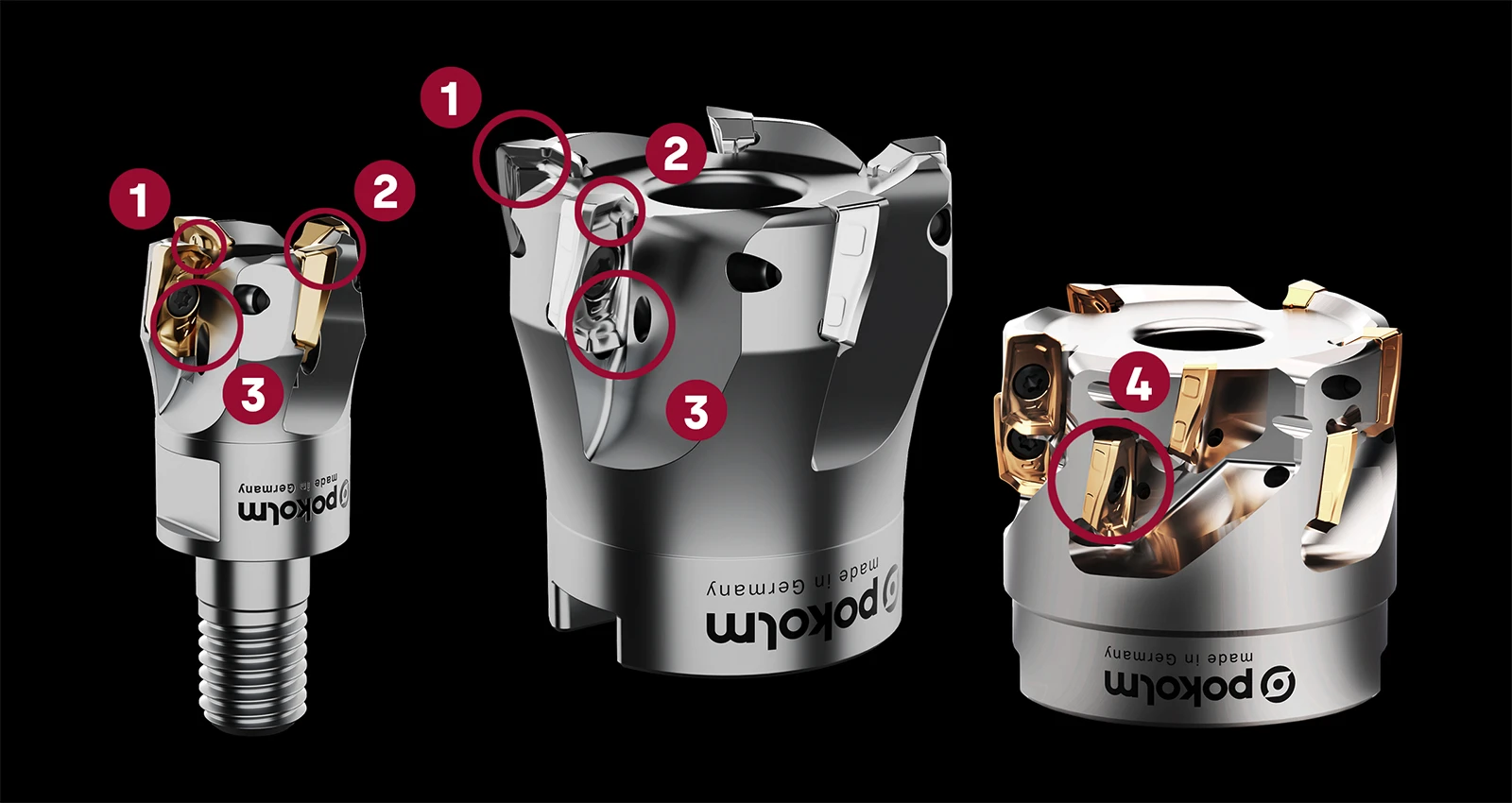

The Shoulder, slotting and chamfer cutters Slotworx from Pokolm.

  1. face cutting edge with integrated wiper edge
  2. low-vibration milling of 90° shoulders, even in deep cavities
  3. embedded insert seat

Features

  • 01

    optimized coolant supply right up to the cutting edge

  • 02

    special alloy for high durability and corrosion resistance

  • 03

    high-feed inserts for soft and hard materials up to over 60 HRC

  • 04

    integrated finishing chamfer enables outstanding surface finishes

  • 05

    large selection of inserts with corner radii from r = 0.4 mm to r = 5 mm

  • 06

    made from over 80% recycled steel to minimize environmental impact

  • 07

    universal application possibilities: roughing and finishing of different materials

  • 08

    extremely long service life and smooth running thanks to specially developed rake face geometry

Materials

Slotworx® indexable milling cutters enable the effortless roughing and finishing of a wide variety of materials, including steel, cast iron, aluminum, plastic, graphite, hard materials, heat-resistant special alloys and titanium.
