Corner radius and high-feed milling cutters

Uniworx® PLUS

Universal corner radius and high-feed milling cutter for steel finishing
Uniworx Plus are premiumtools from Pokolm.

Uniworx® PLUS is an indexable milling cutter with one-piece inserts that has been developed for a wide range of roughing, finishing and rest machining operations.

In addition to a corner radius insert, the Uniworx® PLUS is also compatible with a high-feed insert, letting you turn the shoulder cutter into a high-feed milling cutter in no time at all. All Uniworx® PLUS tools are available as screw-in or shank-type milling cutters and with Pokolm’s DuoPlug® clamping system for maximum radial run-out accuracy and stiffness. The durable, corrosion-resistant special alloys of the mill bodies are made from over 80% recycled steel to minimize environmental impact.

For maximum process reliability, all Uniworx® PLUS milling systems have a unique internal coolant supply with a fan port through the indexable insert. In this way, the perfectly designed coolant channels ensure maximum acceleration of the coolant.

Indexable inserts

Indexable inserts in two different geometries are available so that the shoulder cutter can be turned into a high-feed milling cutter in no time at all.

The precision-ground corner radius inserts with asymmetrical contact surfaces are ideal for high-precision finish machining. The contact surfaces, in conjunction with a visual and tactile marking, prevent incorrect installation of the cutting insert and enable a simple and above all stable supply of the coolant through the coolant channel in the cutting insert. In addition, a prismatic bore ensures precise positioning of the centering screw and accurate transmission of preloading forces. In combination with inserts that have a small, real corner radius of 0.5 mm and a 1 mm finishing chamfer, Uniworx® PLUS can replace solid carbide milling cutters in some areas. The small corner radius of the finishing inserts also allows for low cutting pressure, minimal displacement and machining right into the tightest corners.

The high-feed inserts deliver maximum material removal rates thanks to huge feed rates. The reinforced carbide grade and optimized coating result in a universal cutting tool material that can handle almost any application, including high-speed cutting work. What you get is an excellent cutting result with maximum process reliability and low inventory costs.

Maximum process reliability, a long service life and maximum cutting rates are guaranteed with both types of inserts. The cutting tool can therefore be used highly economically and flexibly for roughing and finishing operations.

Areas of application

The tool body, inserts and cutting tool materials are optimally coordinated and guarantee the efficient machining of flat or free-form surfaces, shoulders, slots and pockets. With the center of the insert featuring 8° concave geometry, Uniworx® PLUS ensures effortless linear or circular ramping into the workpiece material. Uniworx® PLUS is an economical and versatile solution for roughing and finishing operations.

  • The icon describes the face milling processing type.

    face milling

  • The icon describes the angled plunging processing type.

    angled plunging

  • The icon describes the circular plunging processing type.

    circular plunging

  • The icon describes the pocket milling processing type.

    pocket milling

  • The icon describes the copy end milling processing type.

    copy end milling

  • The icon describes the slot milling processing type.

    slot milling

  • The icon describes the sharp corner milling processing type.

    sharp corner milling

Highlights

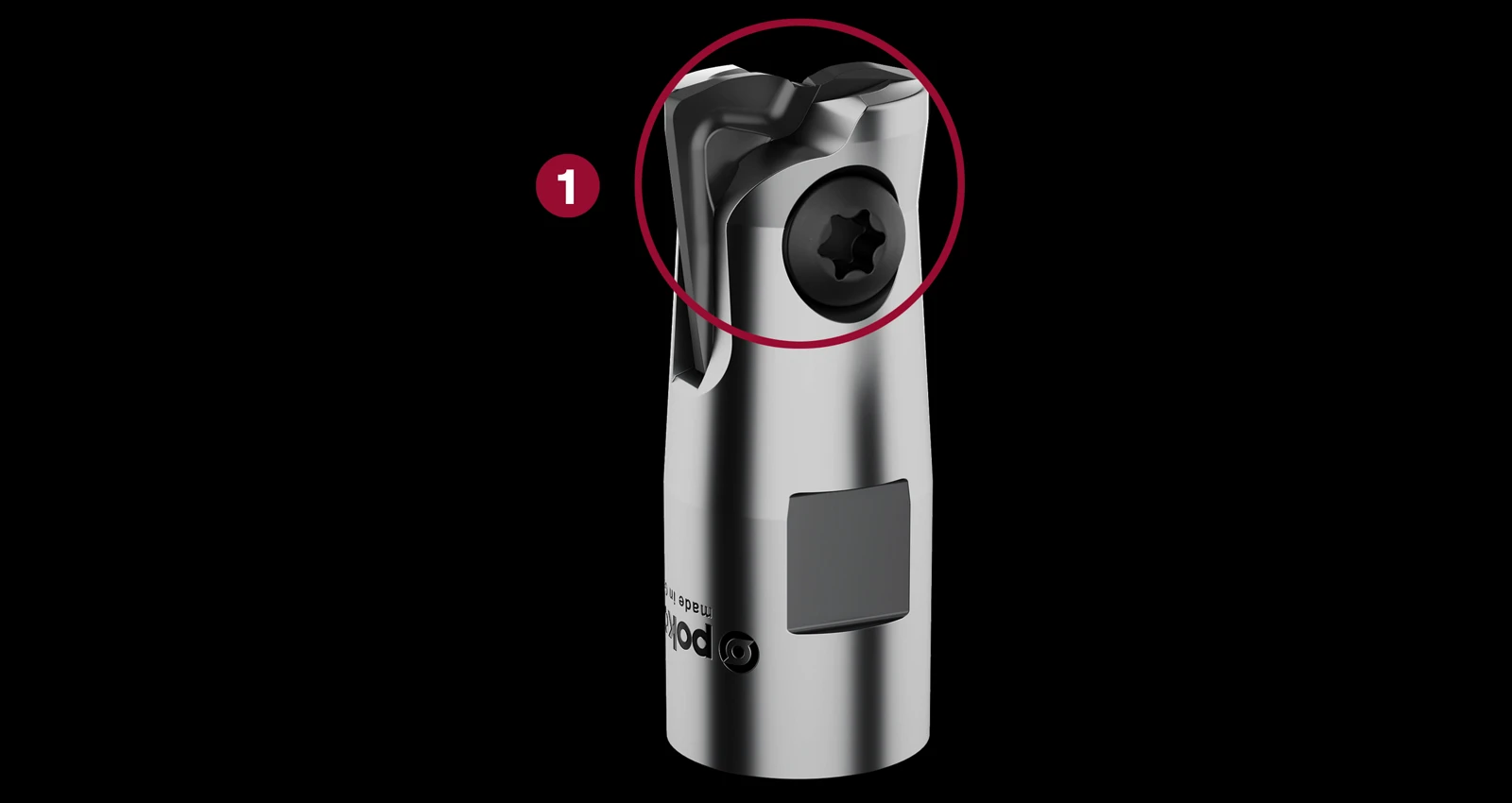

The high-feed milling cutter Uniworx Plus from Pokolm.

  1. available with high-feed or corner radius inserts

Features

  • 01

    roughing and rest machining with high-feed inserts

  • 02

    tool concept for steel roughing and finishing operations

  • 03

    special alloy for high durability and corrosion resistance

  • 04

    asymmetrical contact surfaces for error-free positioning

  • 05

    unique coolant supply system with fan port through the insert

  • 06

    made from over 80% recycled steel to minimize environmental impact

  • 07

    precision-ground corner radius inserts for high-precision finish machining

Materials

These versatile premium tool systems make light work of steel, cast iron and hard materials as well as heat-resistant special alloys and titanium, non-ferrous metals and plastics.
