Indexable inserts

Almost all materials are fair game with the versatile cutting inserts from Pokolm
Jump to:
A large selection of indexable inserts from Pokolm.

With different substrates and coatings, Pokolm’s indexable inserts can make light work of almost all materials.

Pokolm offers cutting inserts in various sizes and material grades – ready to tackle any challenge. In designs either with or without a concave molding, they are used for roughing and finishing metals, non-metals and plastics. Special cutting edge rounding increases service life, while some inserts feature up to eight cutting edges for greater cost-effectiveness. Spinworx® indexable inserts are a cut above. They are anything but ordinary round inserts. The high-precision race ensures constant rotation. The cutting edge is utilized 100% thanks to the self-rotating design. Manual adjustment is no longer necessary.

Selected highlights

  • Golden round inserts with the PVGO coating are screwed onto the Spinworx from Pokolm.
  • Golden indexable inserts with PATG coating screwed onto the Slotworx HP from Pokolm.
  • The indexable inserts with the PPTi coating are screwed onto the Slotworx VF from Pokolm.
  • Golden indexable inserts with PVTi coating screwed onto the Mirroworx from Pokolm.
  • Golden indexable inserts with the PVGO coating are screwed onto the Quadworx XL from Pokolm.

Spinworx®

Spinworx® indexable inserts are anything but ordinary round inserts: they rotate on their own during machining. Manual adjustment of the inserts is no longer necessary. Meanwhile, 100% utilization of the cutting edge is achieved over the entire circumference of the insert. This insert saves you time and reduces the scope for errors.

Slotworx® HP

Slotworx® HP indexable inserts are ground in a high-precision manufacturing process and can replace solid carbide milling cutters in some areas. Depending on the coating used, a single insert grade can be suitable for both soft and hard machining. The range also includes a cutting insert specially designed for machining vertical walls.

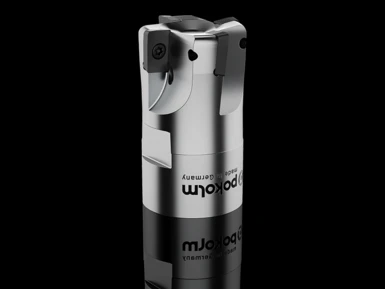

Slotworx® VF

Slotworx® VF indexable inserts are the gold standard when it comes to finishing work. Excellent results are achieved when finishing 90° walls. The range also includes a face milling cutter that can be used to achieve first-class face finishes. All inserts are also suitable for deep-cavity milling.

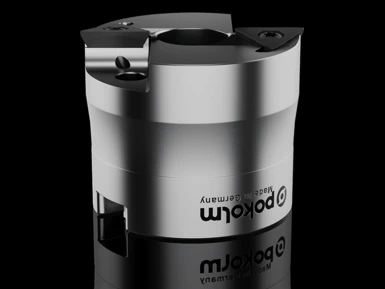

Mirroworx®

Mirroworx® indexable inserts eliminate the need for an additional grinding step. The inserts achieve surface finishes of Rz < 2.5 µm. Meanwhile, the three cutting edges per insert increase cost-effectiveness. For machining unstable components, the range includes an insert with a shortened cutting edge designed to reduce cutting pressure on the component.

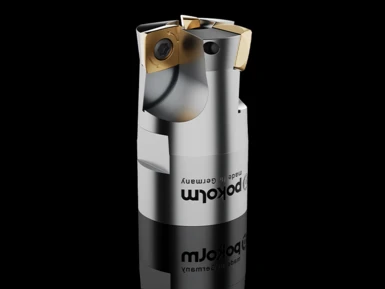

Quadworx®

Quadworx® indexable inserts rule the roost when it comes to milling at high feed rates. With four cutting edges per insert, these high-feed indexable inserts are also highly cost-effective. The range also includes a 90° insert in size XL, meaning the high-feed cutter can also be used for shouldering and slotting applications.

Contact

Are you looking for a suitable solution for your challenge?

Pokolm premiumtools logo in black.

We are here to help and look forward to hearing from you.
